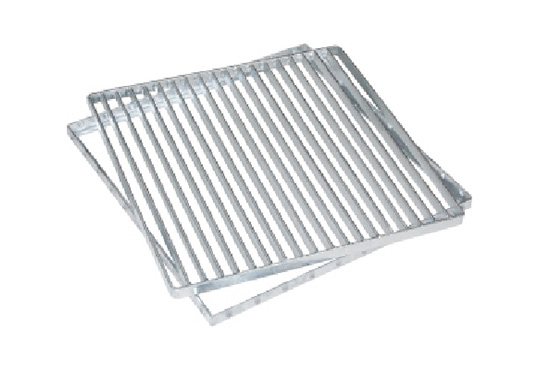

SQUARE DRAINAGE GRILLE

GALVANIZED GRILLS

SQUARE DRAINAGE GRILLE GALVANIZED

FEATURES

  • Grill Grid made of rectangular bar, with 20mm intervals for water drainage
  • Rim Rim made in angle
  • Material Rectangular steel bar 20x5mm
  • Processing Hot dip galvanizing - E.I.R. 45um / E.M.R. 55u
  • Installation location Group 1 - Class A15 - Areas used exclusively by pedestrians and cyclists
  • STANDARD NP EN124:1995 - Drain entry devices and manhole closure devices, for pedestrian and vehicle circulation areas
REF A (mm) B (mm) C (mm) MODULES CLASS
91200 200 170 25 1 A15
91250 250 220 25 1 A15
91300 300 270 25 1 A15
91350 350 320 25 1 A15
91400 400 370 25 1 A15
91450 450 420 25 1 A15
91500 500 470 25 1 A15
91550 550 520 25 1 A15
91600 6000 570 25 1 A15
