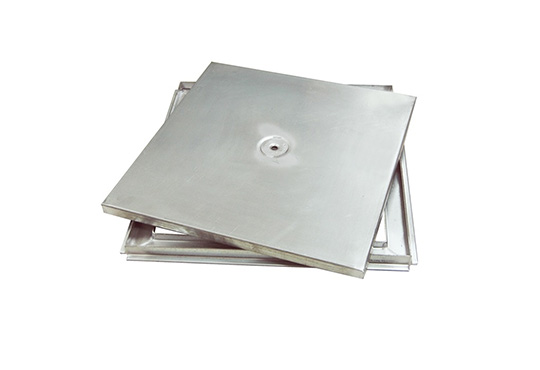

SHALLOW COVER LIGHT SERIES

GALVANIZED COVERS

SHALLOW COVER LIGHT SERIES GALVANIZED

FEATURES

  • Cover Cover in sheet steel, when placed on the rim, it is at the same level as the top of the rim
  • Rim Steel rim, hydraulically sealed to prevent odors from passing through and with a rim on the outside for better fixation
  • Material Galvanized 1.5mm sheet
  • Installation location Group 1 - Class A15 - Areas used exclusively by pedestrians and cyclists
  • STANDARD NP EN124:1995 - Drain entry devices and manhole closure devices, for pedestrian and vehicle circulation areas
REF AxA (mm) BxB (mm) C (mm) DxD (mm) MODULES CLASS
42300 300x300 220x220 27 325x325 1 A15
42400 400x400 320x320 27 425x425 1 A15
42500 500x500 420x420 27 525x525 1 A15
42600 600x600 520x520 27 625x625 1 A15
