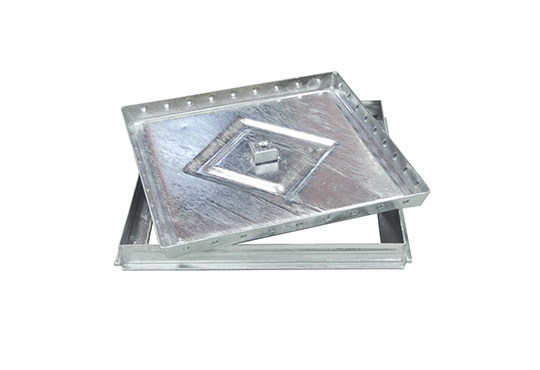

RECESSED COVER 25mm GALVANIZED

GALVANIZED COVERS

RECESSED COVER 25mm GALVANIZED GALVANIZED

FEATURES

  • Cover Steel cover, conical shape, 25mm recessed top with radial ribs at the bottom for greater strength
  • Rim Steel rim, hydraulically sealed to prevent odors from passing through and with a rim on the outside for better fixation
  • Material S235JR 3mm steel sheet
  • Processing Hot dip galvanizing - E.I.R. 45um / E.M.R. 55um
  • Installation location Group 1 - Class A15 - Areas used exclusively by pedestrians and cyclists
  • STANDARD NP EN124:1995 - Drain entry devices and manhole closure devices, for pedestrian and vehicle circulation areas
REF AxA (mm) BxB (mm) C (mm) DxD (mm) MODULES CLASS
41302 300x300 220x220 50 325x325 1 A15
41402 400x400 320x320 50 425x425 1 A15
41502 500x500 420x420 50 525x525 1 A15
41602 600x600 520x520 50 625x625 1 A15
41702 700x700 620x620 50 725x725 1 A15
41802 800x800 720x720 50 825x825 2 A15
41902 900x900 820x820 50 925x925 2 A15
41102 1000x1000 920x920 50 1025x1025 2 A15
