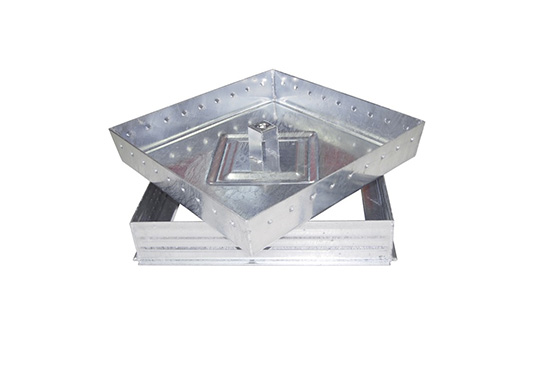

RECESSED COVER 75mm GALVANIZED

GALVANIZED COVERS

RECESSED COVER 75mm GALVANIZED GALVANIZED

FEATURES

  • Cover Steel cover, conical shape, 25mm recessed top with radial ribs at the bottom for greater strength
  • Rim Steel rim, hydraulically sealed to prevent odors from passing through and with a rim on the outside for better fixation
  • Material S235JR 3mm steel sheet
  • Processing Hot dip galvanizing - E.I.R. 45um / E.M.R. 55um
  • Local de instalação Group 2 - Class B125 - Sidewalks, pedestrian areas and comparable areas, car parks and parking silos for light vehicles.
  • STANDARD NP EN124:1995 - Drain entry devices and manhole closure devices, for pedestrian and vehicle circulation areas
REF AxA (mm) BxB (mm) C (mm) DxD (mm) MODULES CLASS
41307 300x300 220x220 100 325x325 1 B125
41407 400x400 320x320 100 425x425 1 B125
41507 500x500 420x420 100 525x525 1 B125
41607 600x600 520x520 100 625x625 1 B125
41707 700x700 620x620 100 725x725 1 B125
41807 800x800 720x720 100 825x825 2 B125
41907 900x900 820x820 100 925x925 2 B125
41107 1000x1000 920x920 100 1025x1025 2 B125
