MULTI-OPERATOR VISIT CHAMBER COVER

GALVANIZED COVERS

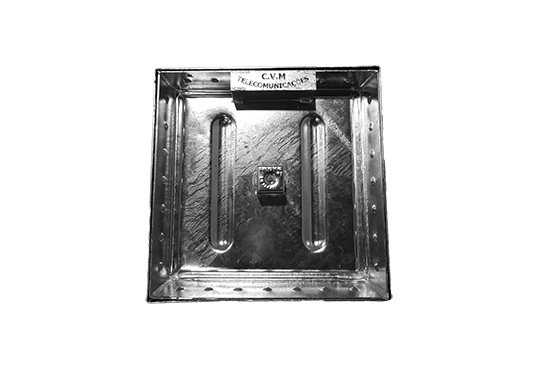

MULTI-OPERATOR VISIT CHAMBER COVER GALVANIZED

FEATURES

  • Cover Non-slip sheet steel cover, when placed on the rim it is at the same level as the top of the rim, identified with the inscription “Telecommunications” and “CVM”
  • Rim Steel rim, with hydraulic seal to prevent the passage of odors and with a rim on the outside for better fixation
  • Material S235JR 3mm steel sheet
  • Processing Hot dip galvanizing - E.I.R. 45um / E.M.R. 55u
  • Local de instalação Group 2 – Class B125 - Sidewalks, pedestrian areas and comparable areas, car parks and parking silos for light vehicles.
  • STANDARD NP EN124:1995 - Drain entry devices and manhole closure devices, for pedestrian and vehicle circulation areas
REF AxA (mm) BxB (mm) C (mm) DxD (mm) MODULES CLASS
CVM405 400x400 320x320 27 425x425 1 B125
