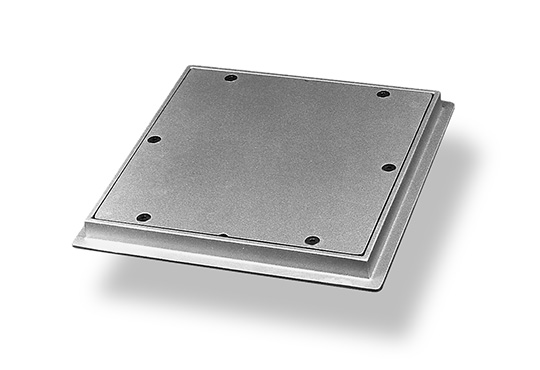

WATERTIGHT SHALLOW COVER

ALUMINIUM COVERS

WATERTIGHT SHALLOW COVER ALUMINIUM

FEATURES

  • Cover Cast aluminium cover, with radial nerves at the bottom for added strength
  • Rim Die-cast aluminium rim, with a rim on the outside for better fixation
  • Joint Sealing gasket in E.P.M. 8mm cord type
  • Material Cast aluminium
  • Installation location Group 1 - Class A15 - Areas used exclusively by pedestrians and cyclists
  • STANDARD NP EN124:1995 - Drain entry devices and manhole closure devices, for pedestrian and vehicle circulation areas

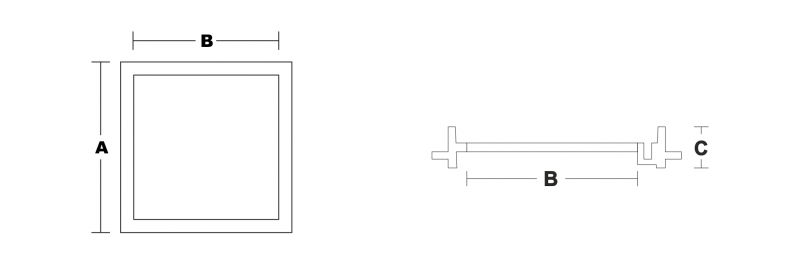

REF AxA (mm) BxB (mm) C (mm) MODULES CLASS
M10030 295x295 250x250 55 1 A15
M10040 395x395 340x340 55 1 A15
M10050 500x500 440x440 60 1 A15
M10060 600x600 530x530 60 1 A15
