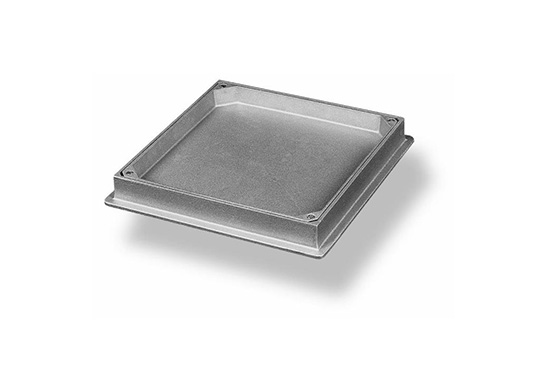

WATERTIGHT RECESSED COVER 40mm

ALUMINIUM COVERS

WATERTIGHT RECESSED COVER 40mm ALUMINIUM

FEATURES

  • Cover Die-cast aluminium cover, 40mm recessed top, with radial ribs at the bottom for added strength
  • Rim Die-cast aluminium rim, with a rim on the outside for better fixation
  • Joint Sealing gasket in E.P.M. 8mm cord type
  • Material Cast aluminium
  • Installation location Group 1 - Class A15 - Areas used exclusively by pedestrians and cyclists
  • STANDARD NP EN124:1995 - Drain entry devices and manhole closure devices, for pedestrian and vehicle circulation areas

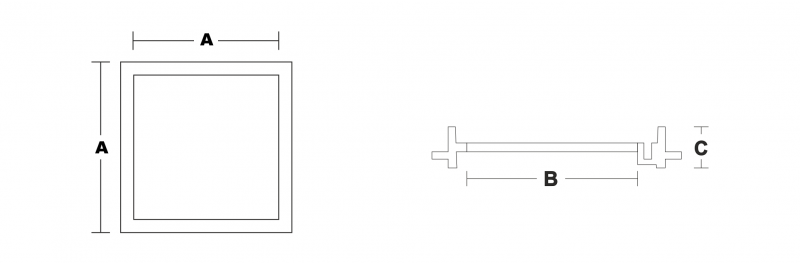

REF AxA (mm) BxB (mm) C (mm) MODULES CLASS
M10730 300x300 240x240 65 1 A15
M10740 400x400 340x340 70 1 A15
M10750 500x500 440x440 70 1 A15
M10760 600x600 540x540 70 1 A15
