SHALLOW METAL COVER

GALVANIZED COVERS

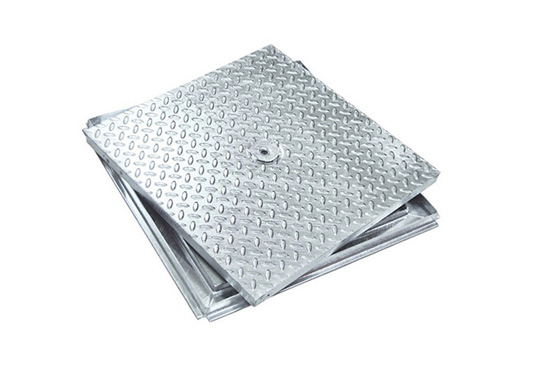

SHALLOW METAL COVER GALVANIZED

FEATURES

  • Cover Non-slip sheet steel cover, when placed on the rim it is at the same level as the top of the rim
  • Rim Steel rim, with hydraulic seal to prevent the passage of odors and with a rim on the outside for better fixation
  • Material S235JR 3mm steel sheet
  • Processing Hot dip galvanizing - E.I.R. 45um / E.M.R. 55um
  • Installation location Group 1 - Class A15 - Areas used exclusively by pedestrians and cyclists
  • STANDARD NP EN124:1995 - Drain entry devices and manhole closure devices, for pedestrian and vehicle circulation areas
REF AxA (mm) BxB (mm) C (mm) DxD (mm) MODULES CLASS
41300 300x300 220x220 27 325x325 1 A15
41400 400x400 320x320 27 425x425 1 A15
41500 500x500 420x420 27 525x525 1 A15
41600 600x600 520x520 27 625x625 1 A15
41700 700x700 620x620 27 725x725 1 A15
41800 800x800 720x720 27 825x825 1 A15
41900 900x900 820x820 27 925x925 1 A15
41100 1000x1000 920x920 27 1025x1025 1 A15
