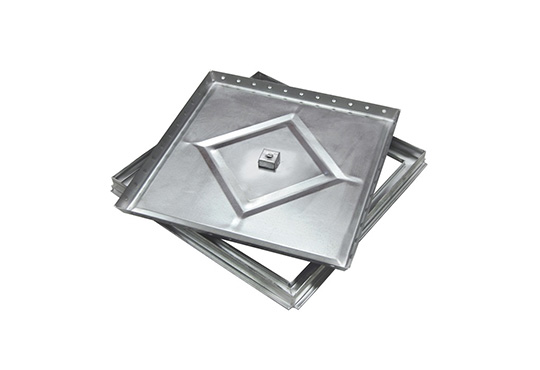

RECESSED COVER LIGHT SERIES 25mm

STAINLESS STEEL COVERS

RECESSED COVER LIGHT SERIES 25mm STAINLESS STEEL

FEATURES

  • Cover Conical shaped stainless steel lid, 25mm recessed top with radial nerves at the bottom for greater strength
  • Rim Stainless steel rim, with hydraulic seal to prevent the passage of odors and with a rim on the outside for better fixation
  • Material AISI 304 1.5mm stainless steel sheet
  • Installation location Group 1 - Class A15 - Areas used exclusively by pedestrians and cyclists
  • STANDARD NP EN124:1995 - Drain entry devices and manhole closure devices, for pedestrian and vehicle circulation areas
REF AxA (mm) BxB (mm) C (mm) DxD (mm) MODULES CLASS
40302 300x300 220x220 50 325x325 1 A15
40402 400x400 320x320 50 425x425 1 A15
40502 500x500 420x420 50 525x525 1 A15
40602 600x600 520x520 50 625x625 1 A15
